DCN 060-018-06-3D-PICCO

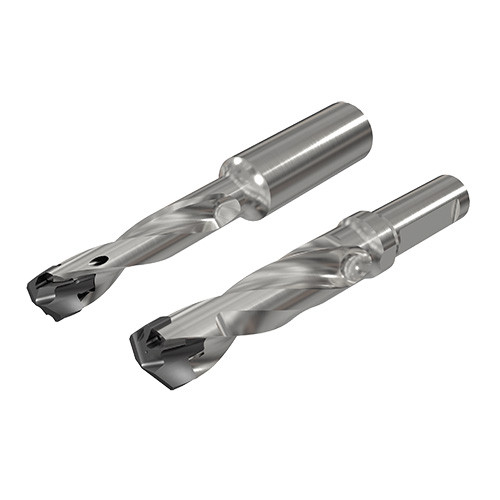

SUMOCHAM 3xD drills with exchangeable heads, PICCO connection, and internal coolant holes. The DNC-PICCO drill can accommodate any of the SUMOCHAM drilling heads for various applications and materials
Specyfikacja produktu

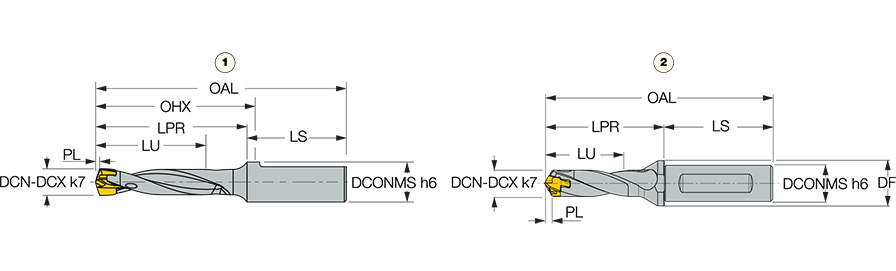

| Usable Length (LU) | 18.96 mm | Shank Length (LS) | 14.9 mm |
| Rodzaj cholewki | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Aplikacja | | Wiercenie | | Rodzaj pomiaru | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Master Insert Identification (MIID) | ICP 060 |
| Insert Seat Size Code (SSC) | 6.0 | Point Length (PL) | 0.96 mm |
| Cutting Diameter Minimum (DCN) | 6 mm | Materiał ciała | Steel |
| Cutting Diameter Maximum (DCX) | 6.49 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 29.6 mm | Jednostka | M |
| Overall Length (OAL) | 44.5 mm |
Cechy produktu
| FamilyDesc | SUMOCHAM 3xD drills with exchangeable heads, PICCO connection, and internal coolant holes. The DNC-PICCO drill can accommodate any of the SUMOCHAM drilling heads for various applications and materials | COO | Israel |
| Uwagi | Do not mount smaller drilling heads other than the specified range of the drill body |
Informacje o dostawie
Waga paczki
0.0280
