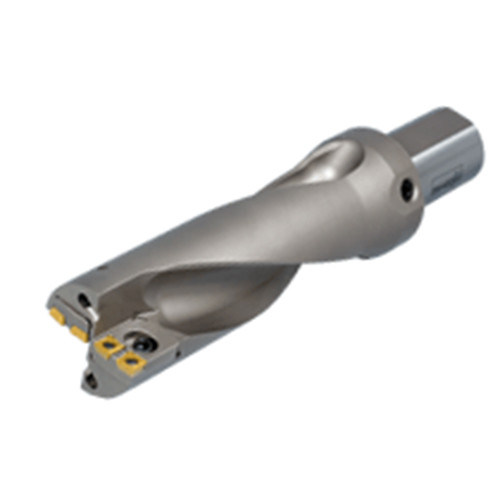

DR2.48>2.6-6.5-2-10/11CA

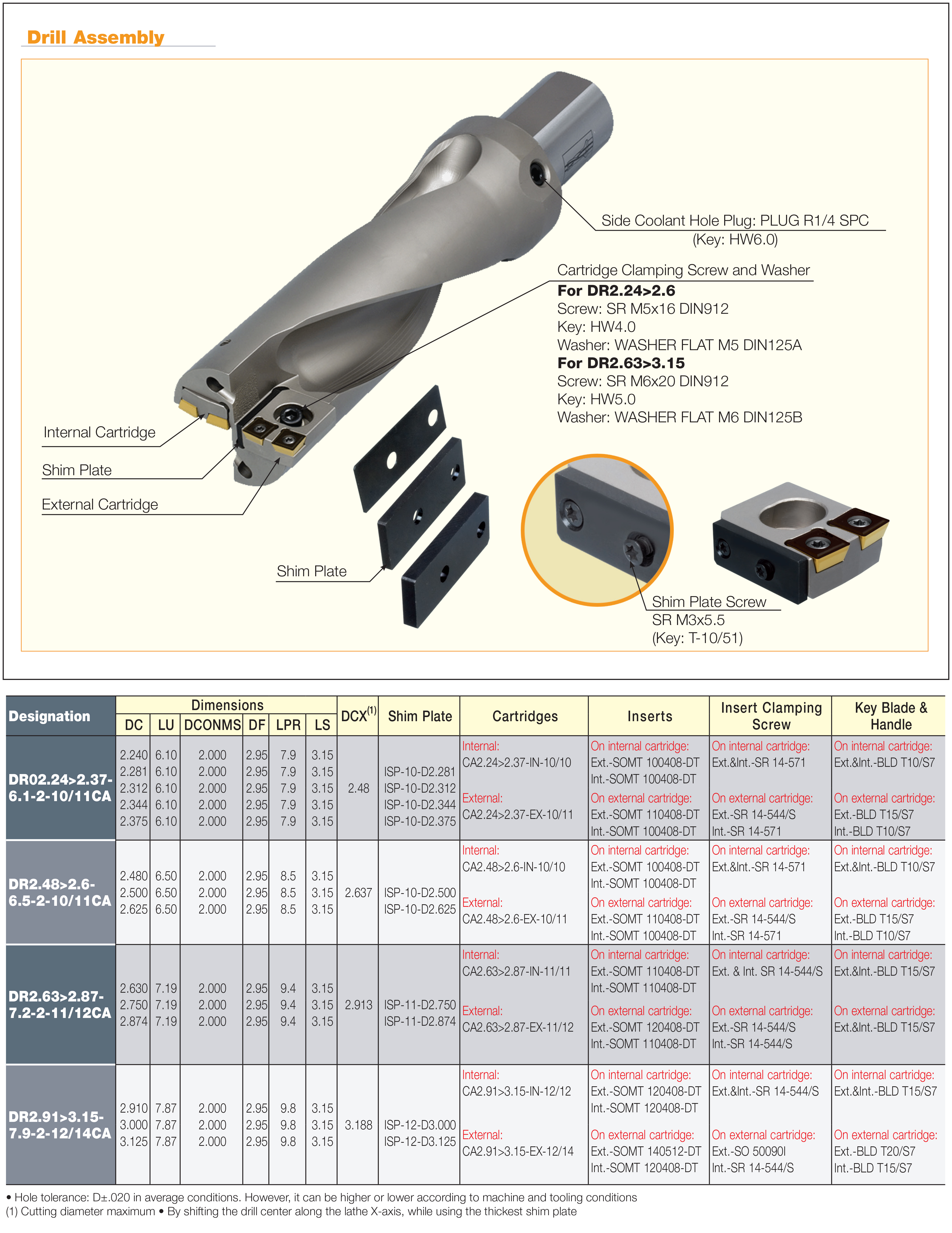

Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed.
Specyfikacja produktu

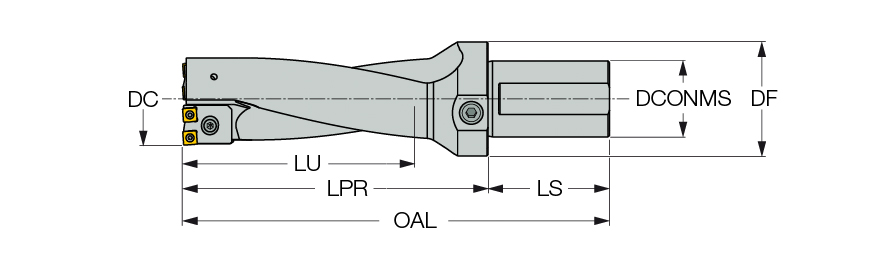

| Cutting Diameter (DC) | 2.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6-1/2″ | Cutting Diameter Minimum (DCN) | 2.48″ |
| Aplikacja | | Wiercenie | | Cutting Diameter Maximum (DCX) | 2.637″ |
| Connection Diameter Machine Side (DCONMS) | 2″ | Flange Diameter (DF) | 2.72″ |
| Tool Type | indexable head drills | Rodzaj pomiaru | Inch |
| Protruding Length (LPR) | 8-1/2″ | Materiał ciała | Steel |
| Shank Length (LS) | 3.15″ | Równoważnik dziesiętny | 2.48″ |
| Functional Length (LF) | 8.409″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 11.65″ | Jednostka | I |
Cechy produktu
| FamilyDesc | Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed. | COO | Korea |
| Uwagi | Hole tolerance: D±.020 in average conditions applied. It can be higher or lower according to machine and tooling conditions For each drill diameter assembly parts, click on More Info. |
Informacje o dostawie
Waga paczki
9.9208
