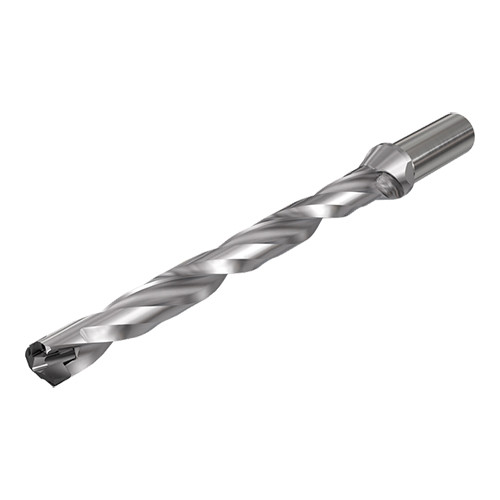

DCN 190-190-25R-10D
SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature a variety of standard drilling head types for drilling on different material groups.
Specyfikacja produktu

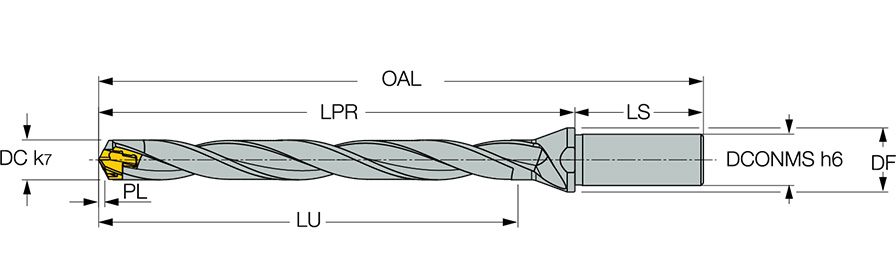

| Cutting Diameter (DC) | 19 mm | Overall Length (OAL) | 276 mm |
| Usable Length (LU) | 192.9 mm | Shank Length (LS) | 56 mm |
| Aplikacja | | Wiercenie | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Rodzaj pomiaru | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | ICP 190 |
| Insert Seat Size Code (SSC) | 19.0 | Point Length (PL) | 2.88 mm |
| Cutting Diameter Minimum (DCN) | 19 mm | Materiał ciała | Steel |
| Cutting Diameter Maximum (DCX) | 19.99 mm | Flange Diameter (DF) | 32 mm |
| Protruding Length (LPR) | 220 mm | Jednostka | M |
Cechy produktu
| FamilyDesc | SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature a variety of standard drilling head types for drilling on different material groups. | COO | Israel |
| Uwagi | Prior to using the 10xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Informacje o dostawie
Waga paczki
0.5460
