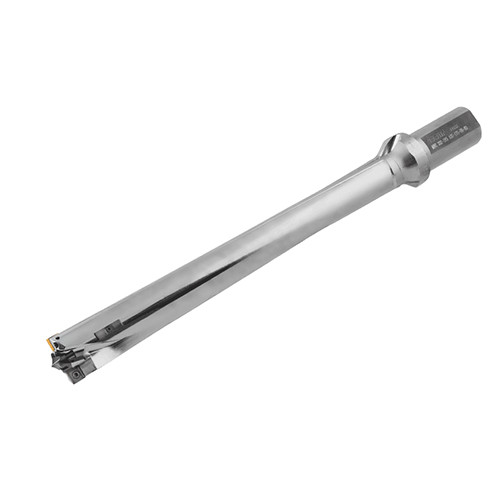

MNC 392-289 A40-219-10-7D
Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 7 and 8xD. High drilling rates, high accuracy and surface finish.
Specyfikacja produktu

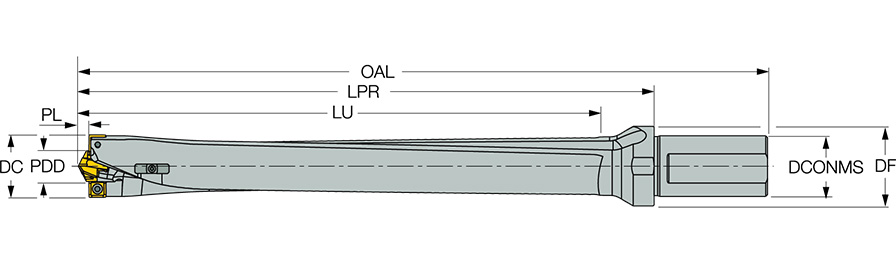

| Cutting Diameter (DC) | 39.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 294.9 mm | Rodzaj pomiaru | Metric |
| Aplikacja | | Wiercenie | | Master Insert Identification (MIID) | SOGT 100408-W |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 5.94 mm |
| Protruding Length (LPR) | 328 mm | Materiał ciała | Steel |
| Overall Length (OAL) | 396 mm | Flange Diameter (DF) | 50 mm |
| Shank Length (LS) | 68 mm | Jednostka | M |
Cechy produktu
| FamilyDesc | Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 7 and 8xD. High drilling rates, high accuracy and surface finish. | COO | Israel |
| Uwagi | Pre-centering is required when using ICP and ICM inserts Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Informacje o dostawie
Waga paczki
2.4530
Powiązana dokumentacja
Pre-centering is required when using ICP and ICM inserts Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
