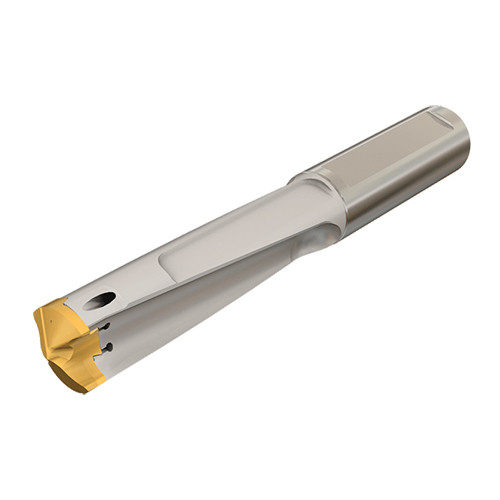

DCM 075-026-8B-3.5D
DCM Indexabie head drills Type B(3). Drilling depth 3.5xD
Specyfikacja produktu

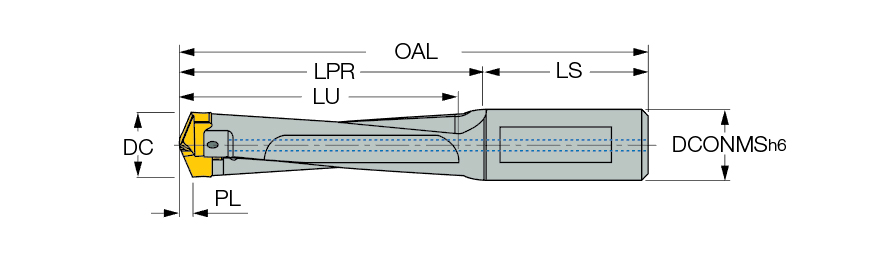

| Usable Length (LU) | 26 mm | Overall Length (OAL) | 76.7 mm |
| Aplikacja | | Wiercenie | Wiercenie z fazowaniem | | Shank Length (LS) | 43 mm |
| Tool Type | Indexable Insert Drills | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Rodzaj pomiaru | Metric |
| Insert Seat Size Code (SSC) | 8.0 | Master Insert Identification (MIID) | IDI 075 |
| Cutting Diameter Minimum (DCN) | 7.5 mm | Point Length (PL) | 1.36 mm |
| Cutting Diameter Maximum (DCX) | 7.9 mm | Materiał ciała | Steel |
| Protruding Length (LPR) | 33.7 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 32.34 mm | Jednostka | M |
Cechy produktu
| FamilyDesc | DCM Indexabie head drills Type B(3). Drilling depth 3.5xD | COO | Israel |
| Uwagi | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Informacje o dostawie
Waga paczki
0.0570

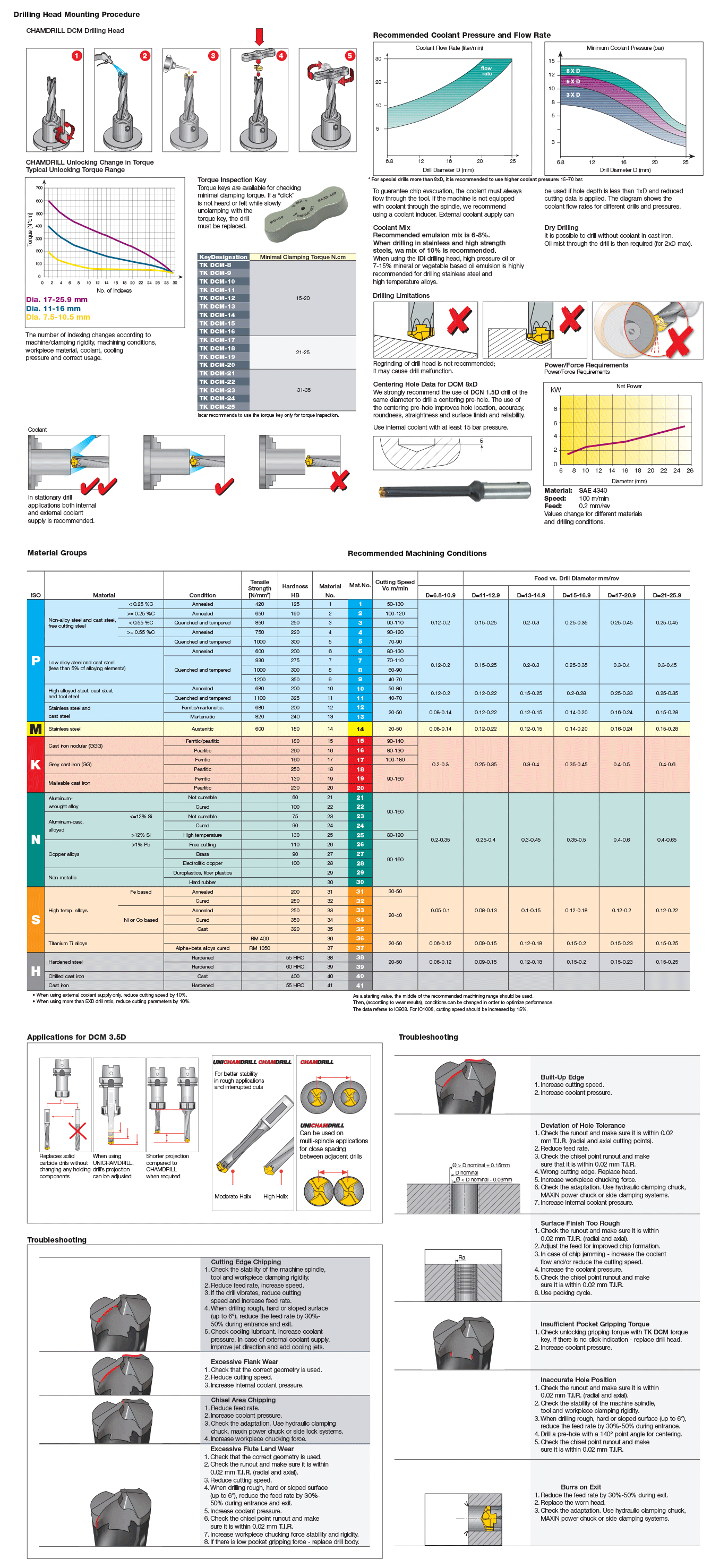

Powiązana dokumentacja
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions. Drill design without a flange. To be used with standard CHAMRING chamfering ring.
