A-PDUNL 20-4

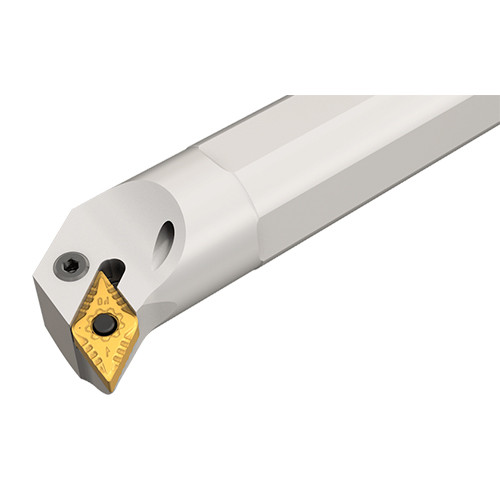

Steel shank with coolant hole lever-lock boring bars for 55° negative rhombic inserts.

Specyfikacja produktu

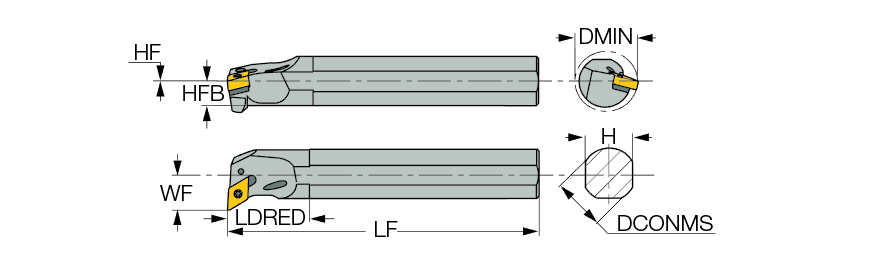

Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
Overall Length (OAL) | 12″ | Aplikacja | | Wewnętrzne z kątem 93° na płytki rombowe 80° | |
Reduced Body Diameter Length (LDRED) | 1.874″ | Rake Angle Axial (GAMP) | -6 Degrees |
Shank Height (H) | 29″ | Rake Angle Radial (GAMF) | -13 Degrees |
Functional Width (WF) | 1″ | Tool Type | Internal Indexble -Turn Tool |
Master Insert Identification (MIID) | DNMG 4.. | Materiał ciała | Steel |
Minimum Bore Diameter (DMIN) | 42″ | Rodzaj pomiaru | Inch |
Cutting Direction (HAND) | Left Hand | Jednostka | I |


Cechy produktu
FamilyDesc | Steel shank with coolant hole lever-lock boring bars for 55° negative rhombic inserts. | Nazwa rodziny produktów | A-PDUNR/L |
COO | Israel | Nazwa handlowa | Iscar |
Informacje o dostawie
Waga paczki
3.4965
Imię
Indexable Internal Turning Tools
Nazwa rodziny produktów
A-PDUNR/L
Nazwa handlowa
Iscar
